Installation instructions:

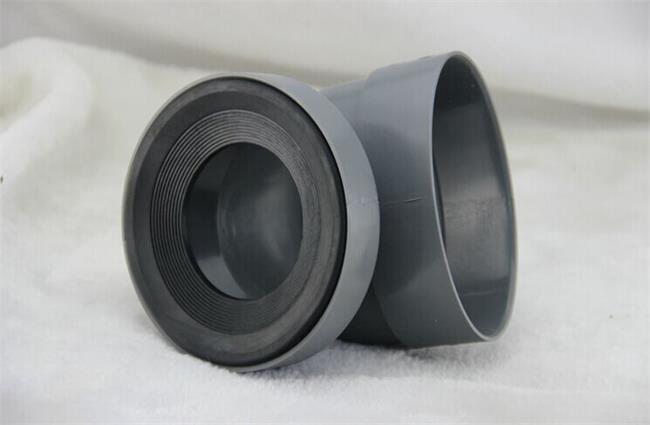

1. Installation composition
(1).
(2). Elliptical tube.
(3). Sealing ring.
2. Determine the distance of the toilet seat.
3. Intercept the length of elliptical tube L1= l-11cm.
4. In the premise of not affecting the strength of floor slab, the
floor opening groove depth to 2~4cm shall be placed to place the
oval tube.
Assemble the product.
Insert the lower joint (with the sealing ring) into the drain pipe
of the toilet.
7. Backfill with water mud.
8. The upper connector and the toilet seat are reserved to connect
the water port.
2. Matters needing attention.
1. Make sure that the surface is clean and free of foreign material
before sticking to the orange mouth, and apply evenly and evenly to
the glue to ensure the sealing.
2. Note that when the sealing ring is installed, there is a step
end, which can not be reversed.
3. The slope of the elliptical tube is not less than 0.2%.
4. After opening the slot, the whole toilet should be waterproof,
especially in the open slot.
5. The distance L should be between 21cm and 200cm.(normal
distance: 30cm)
| Name: | Remove the drain part of the toilet. |
| Type: | S-116 |
| Brand: | San-Tide |
| Origin: | Chian xiamen |
| Advantage: | Corrosion resistance, pipe thickness |
| Performance: | Toilet drain |
| Specifications: | optional |
| Color: | gray |
| Usage: | The lavatory is displaced and drained. |
| Scope of application: | toilet |
| Drainage pattern: | To drain |
| Foreign trade: | is |
| Type: | The toilet accessories |
What is a toilet shifter?
The toilet shifter is fixed with the position of the bathroom wall
and the outlet, and the choice of the seat of the toilet and the
outlet of the drain pipe is not corresponding to the pipe fitting
that cannot be completed.The installation of the toilet shifter is
also very simple.
What are the types of toilet shifters?
Toilet shifter can be divided into adjustable and non-adjustable
two kinds: adjustable shifter is live, can adjust the distance of
shift, the maximum adjustable dozen.The non-adjustable shifter is
the opposite.
Is the toilet shifter working?
As a result of the toilet under drainage is straight type, is the
best way to drainage, generally don't change the position of the
toilet, see some netizens design change the position of the toilet,
toilet drainage pipeline under transversely laid under ground, such
a special risk, and shower laying pipes across the relationship of
the basin that wash a face is not big, because in water, and
arrange the toilet is not only the sewage, and solid, in case of
congestion, so across the pipeline is very difficult to dredge.In
addition, after the use of the toilet shifter, the ground
correspondingly increased, the toilet also was raised.
What does a toilet shifter do?
The toilet shifter is a device (pipe fitting) that can change the
position of the water port under the ground when the water port
under the ground and the water outlet under the toilet are not
suitable.The magic stone toilet shifter can not only change the
position of the bottom of the water under the ground, but also
change the position of the water mouth, and also change the
distance between the magic stone water tank.
How to install the toilet shifter?
1. Small distance displacement, using the shifter, 5CM, 10CM, 15CM,
it is recommended not to exceed 10CM of the shifter, which will
affect the impact of the impact.
2, long distance translocation, surface (20 cm high), exhaust pipe,
the pipe has a certain slope, but the distance is not too long,
long distance pipeline slope is bigger, the ground is increased,
flushing effect also influence.The drain pipe can be connected to
the original pit, and can be connected to the launching main.
3. If there are conditions, you can choose the wall drainage
toilet, as long as the short wall is built, the direct pipe is
connected to the water main.
If it is a duplex, or a villa, you can make a hole in the floor and
retake it.
