The toilet discharge sealing ring flange ring of the rubber wax oil
seat urinator anti-odor seal
High temperature can reach 70 degrees Celsius.Applicable to export.
Good waterproof sealing property, high temperature resistance,
corrosion resistance, aging resistance, dry method, easy
installation and disassembly.
Provide permanent leakproof sealing effect to prevent bugs, odor,
gas and acidic substances from entering.
Apply to 3 'or 4' in the toilet.
The sealing function is suitable for the toilet or wall to install
the water urinal.

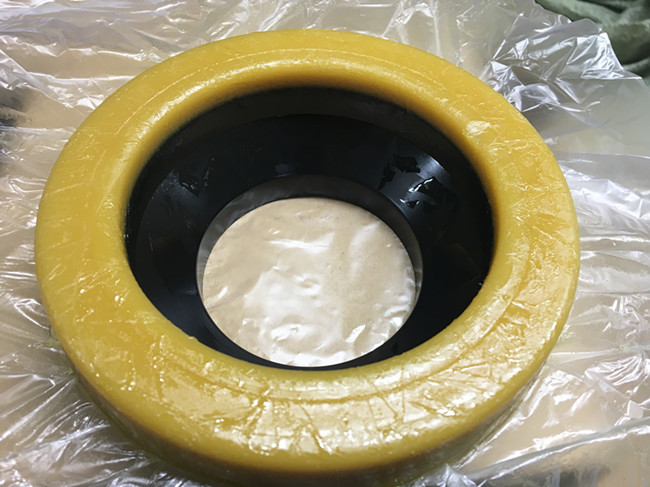

Product name: toilet seal flange
Item no. : S-201
Product size: applicable to 3 - inch and 4 - inch drainage pipe
diameter installation
Merchandise brand: San-Tide
Material composition: WAX
| Name: | Seat urinal wax ring |
| Type: | S-201 |
| Brand: | San-Tide |
| Weight: | 300G |
| Origin: | Chian xiamen |
| Material: | WAX idea |
| Shape: | Type O |
| Scope of application: | Suitable for 3 or 4 drainage pipe diameter |
| Foreign trade: | is |
Test method:
High temperature performance test
1. Take the new sample of the wax ring and put it into the
high-temperature test box, then adjust the temperature to 82
degrees (Celsius), and the temperature must be kept constant.
2. Test time: 5 minutes;
3. Then compare the sample database of the test sample before test.
Storage performance test
1. Take the new sample 3PCS of wax ring and put it into the high
temperature test box, then adjust the temperature to 51.7.
2. The wax ring is placed in three ways according to the positive
release and inverted.
3. Test time: 24 hours;
5. Then compare the test sample data with the sample data before
the test.
Low temperature performance test
1. Take the new sample of the wax ring and put it into the
low-temperature test box, and then adjust the temperature to -10
degrees (Celsius), and the temperature must be kept constant.
2. Test time: 12 hours;
3. Then compare the test sample data with the sample database
before the test.
Acid test
1. In the normal temperature condition, the wax ring sample was
deposited into a solution of 10% hydrochloric acid solution;
2. Test time: 12 hours.
3. Then compare the data of the test sample with the sample data
before the test.
Basic test
1. In the normal temperature condition, the wax ring sample was
deposited into a sodium hydroxide solution containing 10%.
2. Test time: 12 hours.
3. Then compare the data of the test sample with the sample data
before the test.
Leak test
1. The wax ring is adhered to the solid and clean glaze brick, and
the blowpipe with a diameter of 110mm and a length of 250mm is
fixed in the middle of the wax ring, and the water level is 200mm
in the discharge pipe.
2. Test time: 1 week;
3. Observe whether there is water leakage every day.
Adhesion test
1. Apply 5KGF pressure to the glazed tiles of clean and dry and
hold for 1 minute, then invert the wax ring.
2. Test time: 48 hours;
3. Observe whether it falls off.
Atmospheric photooxygen aging test.
1. Place the wax ring sample 2PCS on the open platform;(where
sunlight can shine for a long time)
2. Test time: 10 days.
