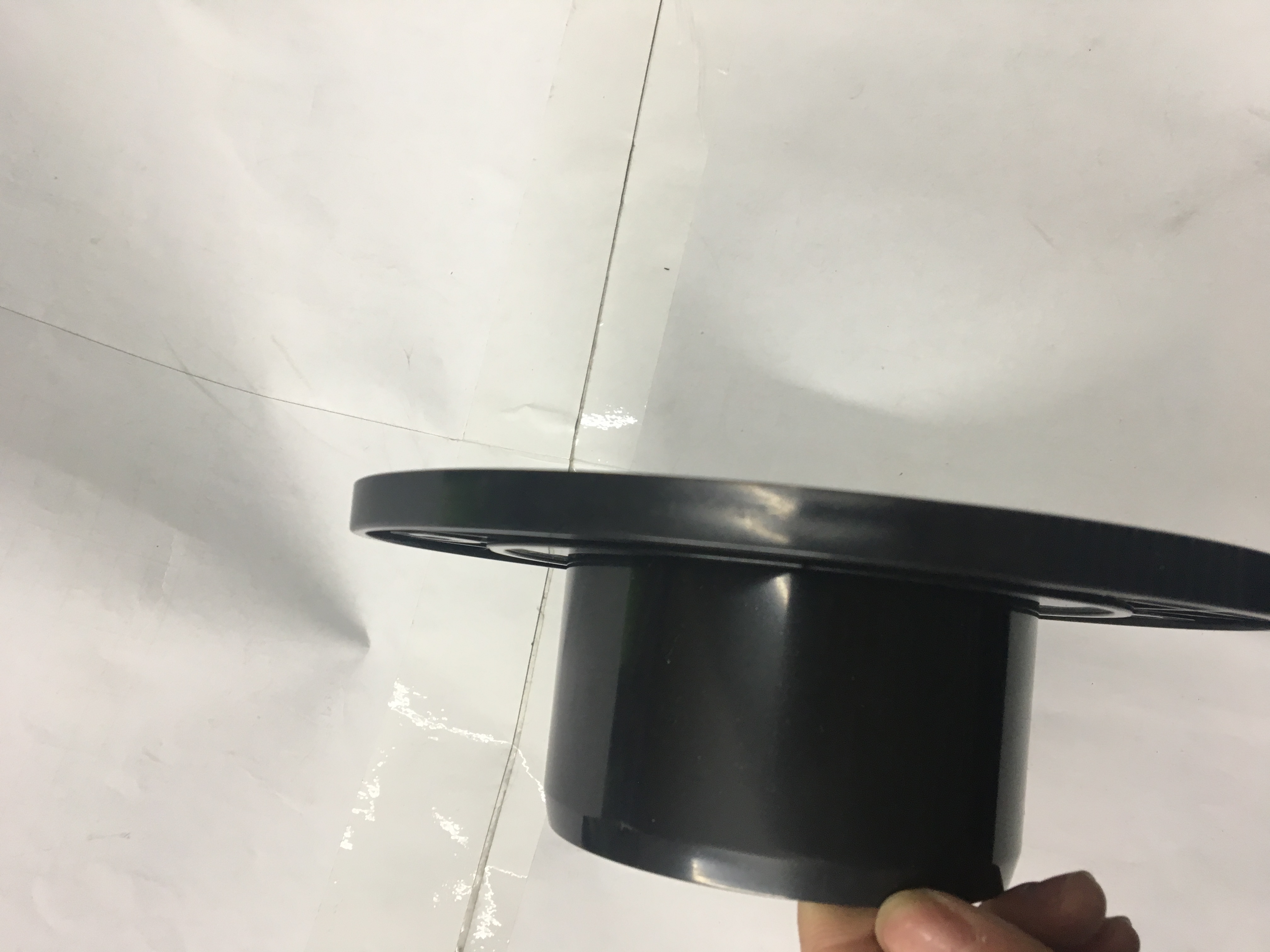

Toilet drain accessories black flange, black, blue, light blue,
deep blue flange.
One of the plumbing fitting------ toilt flange
ABS Foam Core SCH 40 DWV Pipe and ABS DWV Fittings for
Nonpressurized Applications
Joining Method
Solvent cements must meet ASTM D 2116 standard
Primer isn’t recommended
May be joined with a slip-joint compression fitting (a trap
adapter)
Threading ABS-40 foam core pipe isn't recommended
MIP and FIP adapters are available
Application
Drain household sanitary waste (kitchen, bathroom) and groundwater
Not for use with pressurized applications or compressed air /
gasses
Description
Black, rigid pipe and fittings
Joined with solvent cement conforming to ASTM D 2235 standard
Fittings have a gradual sanitary turn
The four basic types of plumbing fitting inside a home include
1.Irrigation PVC
2.ABS DWV Pipe and Fittings
3.Perforated Sewer Pipes
4.Copper Tube Size (CTS) CPVC Pipe and Fittings
| Name: | Install flanges in the toilet. |
| Type: | S-203-4 |
| Brand: | San-Tide |
| Origin: | Chian xiamen |
| Carton size: | offered |
| Color: | black |
| Type: | The toilet accessories |
| Applicable user: | plumber |
| Connection: | ABS dwv pipe |
| Function: | The toilet sewage |
| Processing mode: | LOGO branded |
| Foreign trade: | is |
| Specifications: | Blue, black, light blue.(customizable) |
| Application: | drain waste vent |
| OEM: | available |
1. Determine the installation position and drill holes in the
ground.To the ground at outlet of drain pipe and the bottom of the
toilet bowl, according to the outside of the flush toilet base
size, draw the toilet on the ground points of fixed position of the
hole, and impact drill holes.The hole depth is about 5 cm.
2. Install the toilet seat.Insert the steel expansion bolt into the
ground hole, insert the bottom corner of the toilet into the
expansion bolt and tighten the nut to position the toilet.The
toilet drain is tightly connected with the ground preset drain pipe
and sealed.
3, install the water tank (even the toilet without this step)
according to the installation height and water tank on back wall
perforation position, the corresponding fixed position on the
metope of drilling and tapping into the steel bolts, then put the
water tank in place, make the back wall perforation sets into the
expansion bolt, add 3 mm thick nylon washer on the nut and tighten.
4. Install the connecting pipe between the tank and the toilet seat
(with copper pipe or plastic pipe, etc.), and the connecting pipe
between the inlet pipe and the bottom of the tank (with stainless
steel bellows, etc.).Inlet connection should be equipped with Angle
valve (inlet valve).
5. Install floating ball and other accessories in the tank.
6. After opening the water inlet valve, adjust the float height
according to the required water inlet height in the water tank, and
adjust the tightness of the control screw according to the water
injection valve.
7. After the tank is filled with water, check the toilet drain
capacity, and whether there is leakage in the connection of each
pipe.
8. Seal the gap between the toilet seat and the floor with putty or
silica gel.Cement mortar or cement mortar shall not be used as
sealing material.
9. Install toilet seat and toilet seat.
