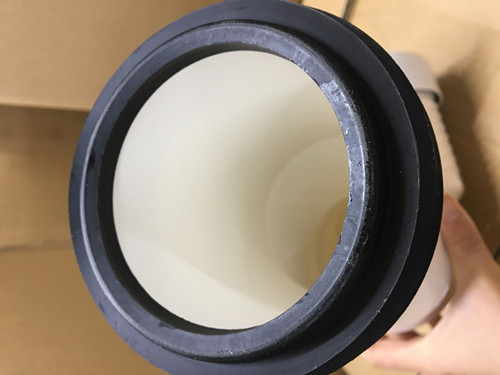

White quality PVC material drain pipe, 9 grid cutting assembly
toilet installation sewage pipe.
How to install toilet drain pipe?
Method 1: bolt fixation method, this method is aimed at the bottom
of the installation hole design of the toilet seat.Toilet on the
location of the installation, use a pencil to draw the need to the
position of the mounting holes in the ground at the bottom of the
hole location and contour, and then remove the toilet, in marked
the location of the hole and insert the explosive bolts, in sit
implement discharge outlet joint coating adhesive, with the ground
will implement smoothly away, strong explosive bolts, and finally
close to the bottom sealing implement with cement mortar.Method
two: cement bonding method, this method is aimed at the bottom no
hole design of the toilet seat.Toilet on the location of the
installation, use the pencil out of the toilet bottom contour,
along the contour line to laying a circle within a 30 mm wide, 15
mm high cement sand pulp, present implement discharge outlet with
the ground joint coating adhesive, wipe clean implement foot,
smoothly in its installation position, make strong the binding,
wipe clean overflow of cement mortar.
Model: S - 106-4
Name: the wall row to change the row to connect the joint.
Material: PVC
Specification: applicable to aperture 102 + 5mm I.D.
| Name: | The wall platoon is rearranged to connect the joint. |
| Type: | S-106-4 |
| Brand: | San-Tide |
| Origin: | Chian xiamen |
| Material: | PVC |
| Function: | Toilet drainage |
| Color: | white |
| Specifications: | Bellows can be cut and adjusted. |
| Cross-border sources: | no |
| Scope of application: | toilet |
| Suitable for: | The aperture 102±5mm |
| Spare parts: | Screw, nut, iron plate. |
| Processing: | Assembly production |
| Foreign trade: | is |
Many people feel that the toilet is very simple, as long as the
buckle on the flange, button on the outlet of a just a matter of,
but installation is easy to a problem, can say in the toilet under
the condition of no problem, the smelly toilet is not good, to see
exactly how to pack.
1, reserve a good outlet pipe has a certain height, the general
need to cut part of the left line 1 cm or so, is too high if the
toilet can not fall to the ground, too low will leave gaps can't
seal.
2. Look at the bottom of the toilet, two large holes and two small
holes. Two small ones are made of burning holes, so they must be
plugged up. Otherwise, they will leak the odor.
The big one is not necessarily all of the toilet, it is made in
order to adapt to different hole spacing, good toilet generally
only a drainage hole, if you buy is this kind of type to
paraphrase, must also want to use glass glue is stuck together.
The one with the black washer is the real sewage outlet, which
needs to be marked out with the ten-word line method, which is also
the target on the ground, so that it can be aligned.
3. First round the drain mouth, and the rim of the toilet bowl with
glass glue.
4. Put the marked mark on the toilet before installing it and keep
it fixed.
5. Water tank test.
6. Put another round of glass glue, and when the glue dries, remove
the extra shovel. The toilet is installed!
